━━━━ SMARTWIRING
A: MARINE ELECTRICAL DISTRIBUTION REDEFINED
SmartWiring is a modular approach to marine electrical distribution that makes professional boat wiring simpler to build, easier to understand and easier to maintain.
Position distribution where it is needed, run duplex cable directly to the equipment, and create a clean electrical system that can grow with your boat.
THE PRINCIPLE
Sustainable electrical wiring architecture
SmartWiring has been designed to make a well-engineered electrical installation easier to build, not more complicated.
FLEXIBILITY WITHOUT UNNECESSARY COMPLEXITY
From simple passive distribution to individually fused and monitored circuits, use as much — or as little — intelligence as the installation requires.
━━━━ SMARTWIRING
B: HOW SMARTWIRING WORKS
Four straightforward steps
SmartWiring has been designed to make a well-engineered electrical installation easier to build, not more complicated.
The principle is simple: distribute power where it is needed, then run a correctly sized duplex cable directly from the SmartWiring block to each device.
01
━━━━
Position the distribution block
Mount the block close to the equipment it will supply and feed it from an appropriately rated, protected circuit.
02
━━━━
Connect the circuit
Run correctly sized duplex cable directly from the block to the device.
03
━━━━
Protect the circuit
Fit the correct fuse for the cable and circuit.
04
━━━━
Add monitoring when required
Connect Smart Terminal Blocks through the Smart Terminal Controller when circuit visibility is required.
THE PRINCIPLE
That’s it!
No unnecessary wiring complexity. No need to route every individual circuit back to one central distribution panel.
The result is a clean, logical electrical installation in which circuits are easy to identify, wiring is easy to follow, and equipment can be added or changed without creating another layer of complexity.
━━━━ SMARTWIRING
C: ONE MODULAR FAMILY
Smart + Passive Together
A monitored, fused Smart Terminal Block output can feed a Passive Terminal Block for grouped loads that do not need individual monitoring
Distributed where it makes sense
Position blocks near group of equipment rather than automatically returning every branch circuit to one large central panel.
Built for expansion
Add blocks and retain spare terminals so future equipment becomes a straightforward extension rather than another compromise.
One architecture from the backbone to branch circuits.
Choose the right level of protection, monitoring an distribution to each part of the boat while retaining a consistent installation method.
THE PRINCIPLE
Professional boat wiring made simple
Distribute power where it is needed, then run a correctly sized duplex cable directly from the SmartWiring block to each device.
━━━━ SMARTWIRING
D: FLEXIBLE DISTRIBUTION
One block. one supply or two
Smart Terminal Blocks use a removable link bar that allows their two fused banks to operate together or independently.
On an 8-way block that means either 1 supply to 8 fused outputs, or 2 independent supplies to 2 x 4 fused outputs.
Single supply – 8 fused outputs
Link bar is fitted for this configuration. One protected supply feeds both banks
- One upstream protected supply
- 8 individually fused circuits
- Simple local distribution from one block
Click to enlarge wiring diagram
Dual supply-2×4 fused outputs
Link bar removed. Each bank is supplied and protected independently.
- Independently protected banks
- Useful for separating equipment groups or areas
- Independent isolation upstream

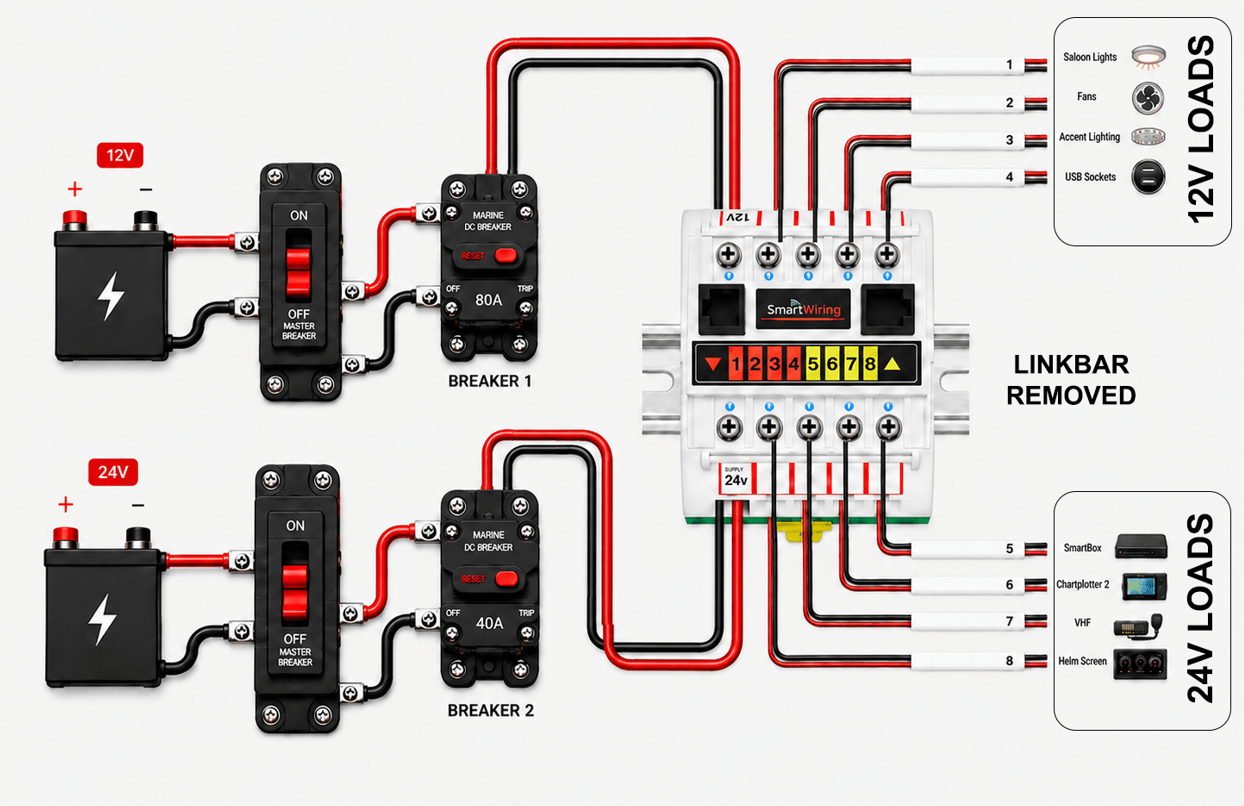

Click to enlarge wiring diagram
Mixed supplies – full flexibility
Independent banks can distribute different system voltages where required.
- Physically separate banks in 1 block
- Differently protected circuits or voltages
- Direct duplex cable from each fused output

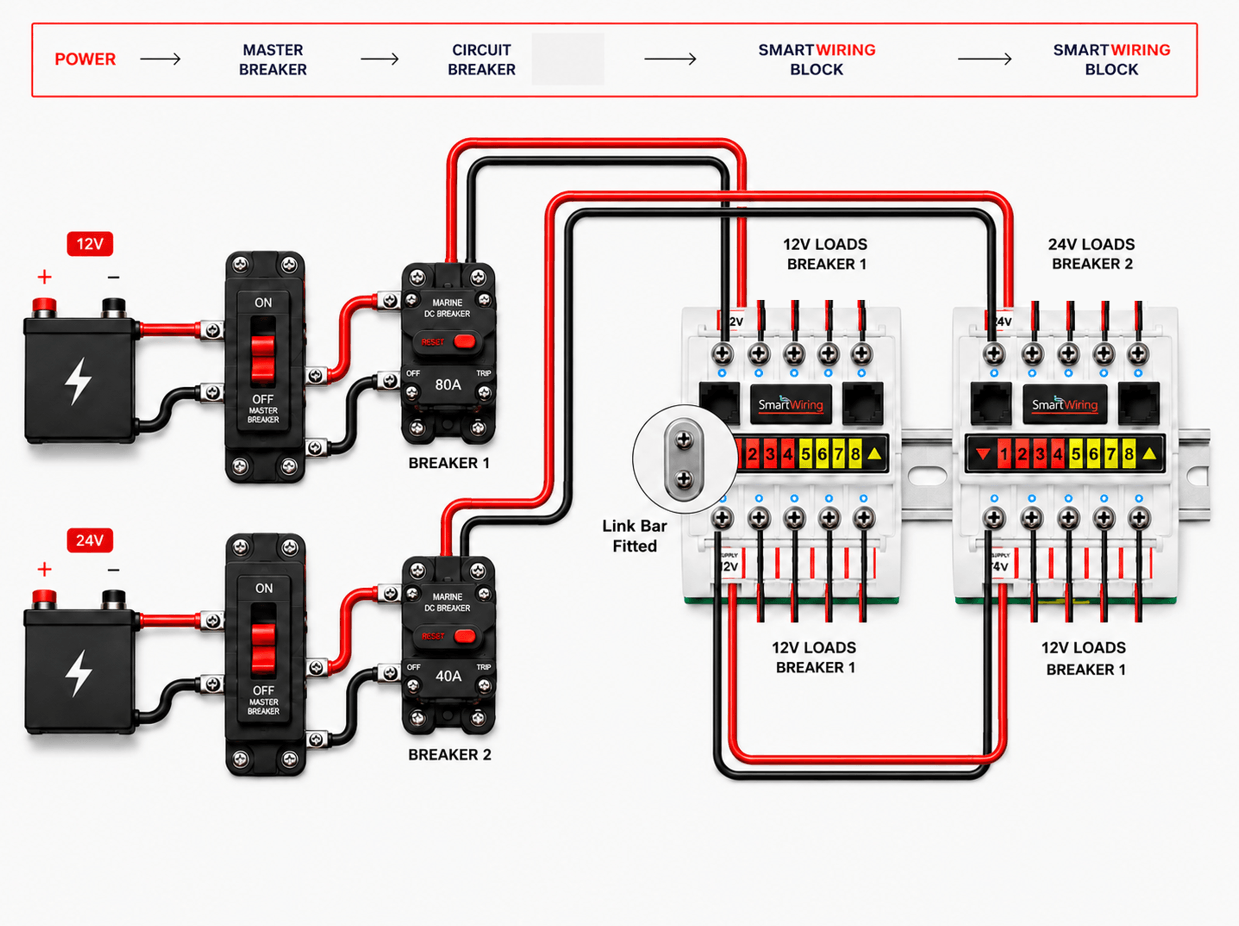

Click to enlarge wiring diagram
E: THE SMARTWIRING FAMILY
Connects and monitors up to eight Smart Terminal Blocks, bringing fuse status and electrical information into mySmartApp.
Explore product — link coming soonProvides eight individually fused and monitored circuits, with two configurable power banks for flexible onboard electrical distribution.
Explore product — link coming soonProvides four individually fused and monitored circuits in a compact block, ideal for smaller groups of electrical equipment.
Explore product — link coming soonProvides simple, organised electrical distribution without individual circuit monitoring, ideal where additional intelligence is unnecessary.
Explore product — link coming soonPaired link bars support organised local distribution in compact installations.
Explore product — link coming soonRobust high-current backbone distribution within the same organised architecture.
Explore product — link coming soonRobust high-current backbone distribution for higher-current electrical systems.
Explore product — link coming soon(Hover over each image to see more details and the brochure)
Interactive Product Popup Settings — Edit descriptions and page links here
These seven descriptions and destination URLs control the image popups. Edit the text below in Gutenberg. Leave a URL blank until the destination page exists. Do not change the product order.
Smart Terminal Controller
Connects and monitors up to eight Smart Terminal Blocks, bringing fuse status and electrical information into mySmartApp.
Destination URL: [https://mysmartboat.com/smart-terminal-controller/?v=adab7b701f23]
Smart Terminal Block 4–8
Provides eight individually fused and monitored circuits, with two configurable power banks for flexible onboard electrical distribution.
Destination URL: [https://mysmartboat.com/smartwiring-product-stb/]
Smart Terminal Block 2–4
Provides four individually fused and monitored circuits in a compact block, ideal for smaller groups of electrical equipment.
Destination URL: [https://mysmartboat.com/smartwiring-product-stb/]
Passive Terminal Block 4–8
Provides simple, organised electrical distribution without individual circuit monitoring, ideal where additional intelligence is unnecessary.
Destination URL: [https://mysmartboat.com/smartwiring-product-stb/]
Link Bar Set
Paired link bars support organised local distribution in compact installations.
Destination URL: [https://mysmartboat.com/smartwiring-product-busbars/?v=adab7b701f23]
Busbar 250A
Robust high-current backbone distribution within the same organised architecture.
Destination URL: [https://mysmartboat.com/smartwiring-product-busbars/?v=adab7b701f23]
Busbar 400A
Robust high-current backbone distribution for higher-current electrical systems.
Destination URL: [https://mysmartboat.com/smartwiring-product-busbars/?v=adab7b701f23]
One architecture from the backbone to branch circuits.
Choose the right level of protection, monitoring an distribution to each part of the boat while retaining a consistent installation method.
Start with better wiring : Add further blocks, monitoring and automation as the boat evolves without rebuilding the underlying distribution architecture.
THE PRINCIPLE
Use intelligence where it adds value.
You do not need to make every circuit intelligent to make the whole electrical system better.
F: A WIRING SYSTEM THAT IS EASIER TO MAINTAIN
The SmartWiring value appears every time something changes!
A structured electrical system isn’t just neater when it is installed. Its real value becomes apparent every time something is added, changed or stops working.
The principle is simple: distribute power where it is needed, then run a correctly sized duplex cable directly from the SmartWiring block to each device.
01
Find faults faster
Separate supply or fuse problems from downstream wiring or equipment more quickly.
02
Keep systems separated
Arrange loads into appropriately protected banks so one fault need not remove unrelated equipment.
03
Protect essential circuits
Supply bilge pumps, alarms and other essential equipment from appropriately protected circuits.
04
Plan for tomorrow
Leave spare ways so future additions become an extension rather than another compromise.
05
Easier to maintain
Clear distribution points and logical circuit identification help anyone understand the installation.
THE PRINCIPLE
A professional wiring architecture is essential for simple maintenance, safety and a more pleasurable sailing experience!
A neat installation on day one is useful.
An installation that is still easy to understand ten years later is far more valuable.
SmartWiring is designed around the long-term value proposition: clear architecture ,accessible distribution and predictable expansion
G: USE INTELLIGENCE WHERE IT ADDS VALUE
You do not need to make every circuit intelligent to make the whole system better.
Start with better wiring. Add intelligence when you want it.
Because the electrical system is already organised into clearly defined circuits and distribution points, adding monitoring, alarms and automation becomes much simpler.
mySmartApp can also record where blocks and circuits are physically located on the boat.
Replace with Screen shot from Chris
A SmartWiring installation can therefore begin as straightforward structured power distribution and evolve into a monitored installation integrated with the wider SmartBoat system — without having to rebuild the underlying distribution architecture.
THE PRINCIPLE
Install a Smart Terminal Controller and link it to your Smart Terminal Blocks and introduce the intelligence layer!
Then the electrical installation becomes visible to the wider SmartBoat system. Circuit and fuse status, electrical information and alerts can be brought into mySmartApp.
