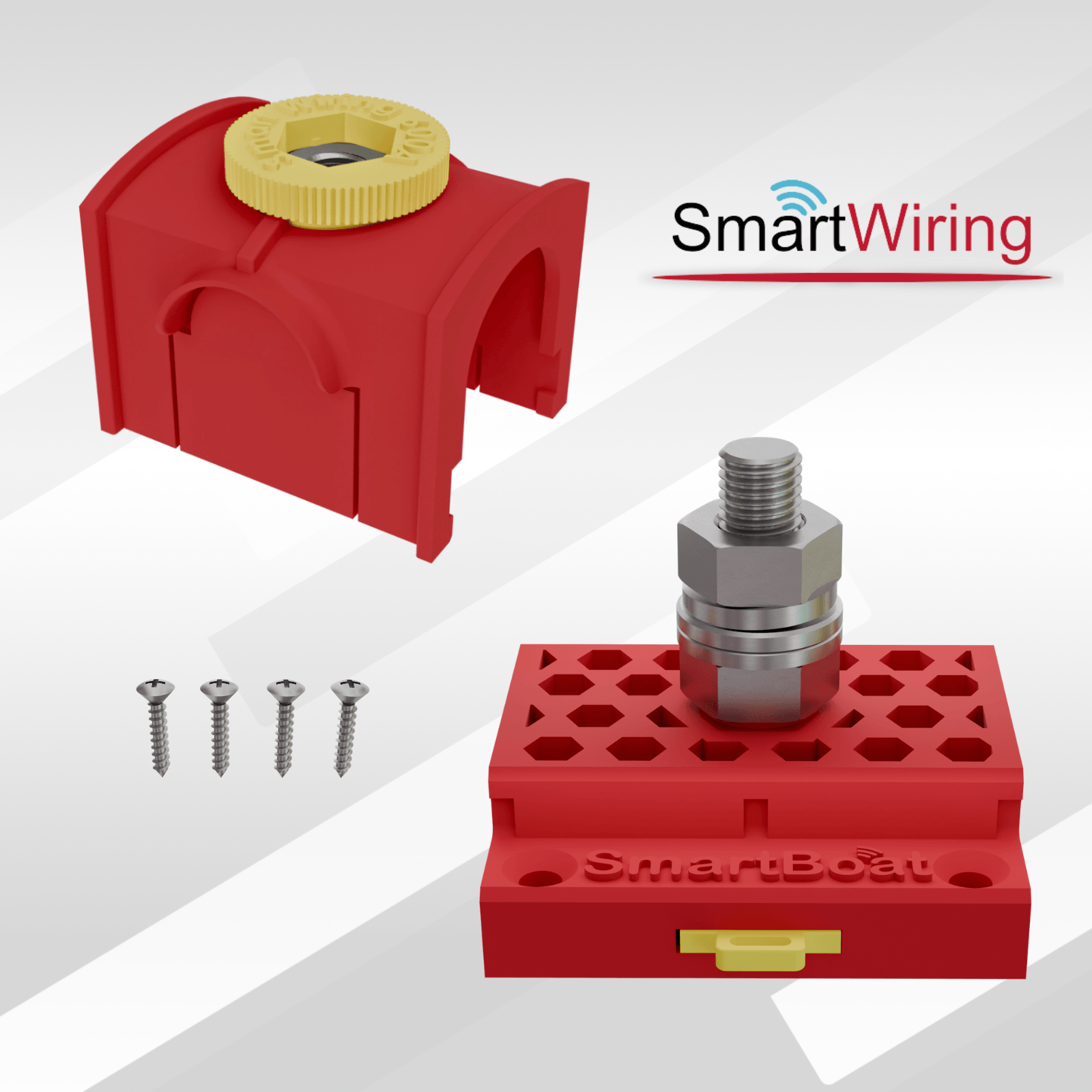

Busbar 400A with M8 Stud Terminal

SmartWiring  : 400A Power Distribution Busbars

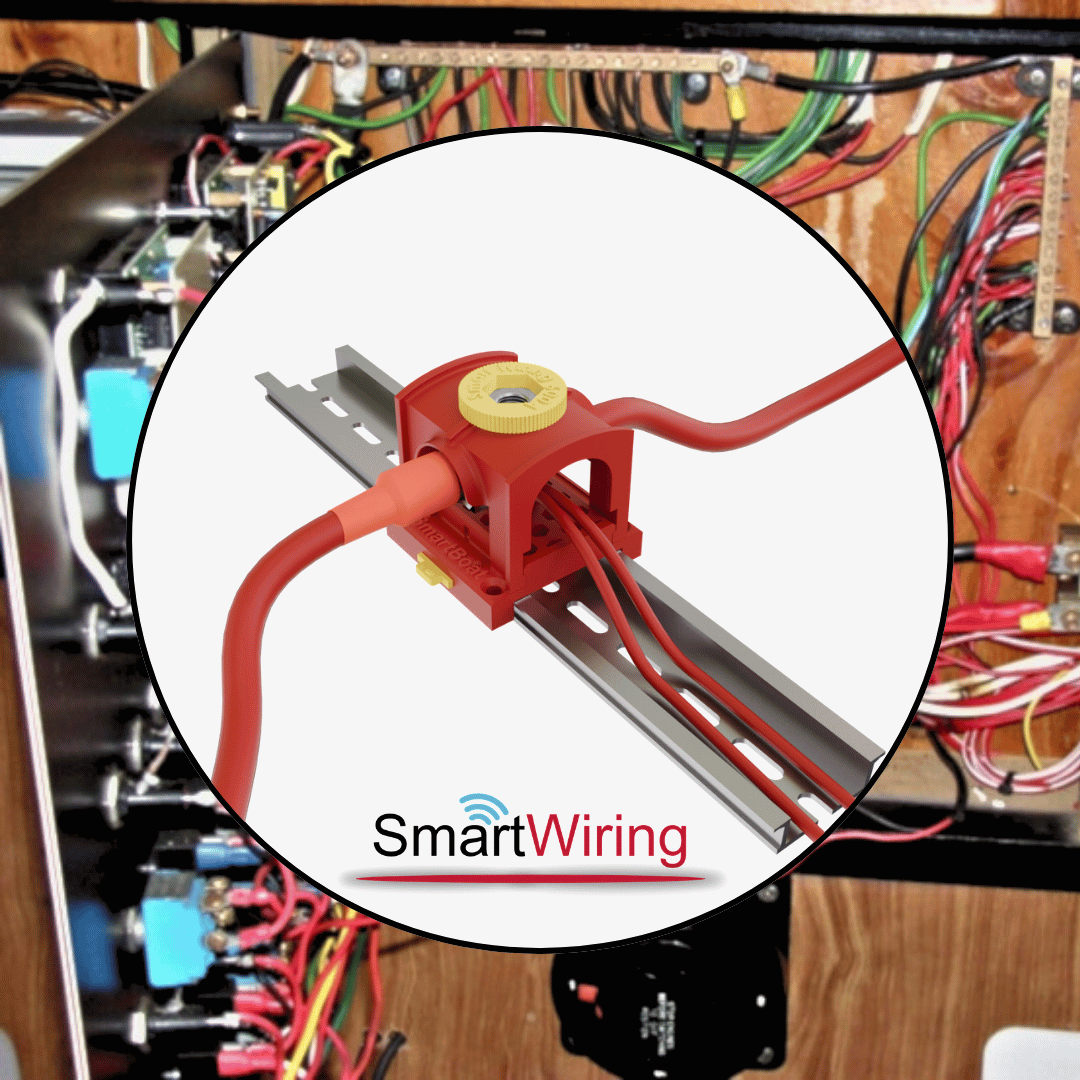

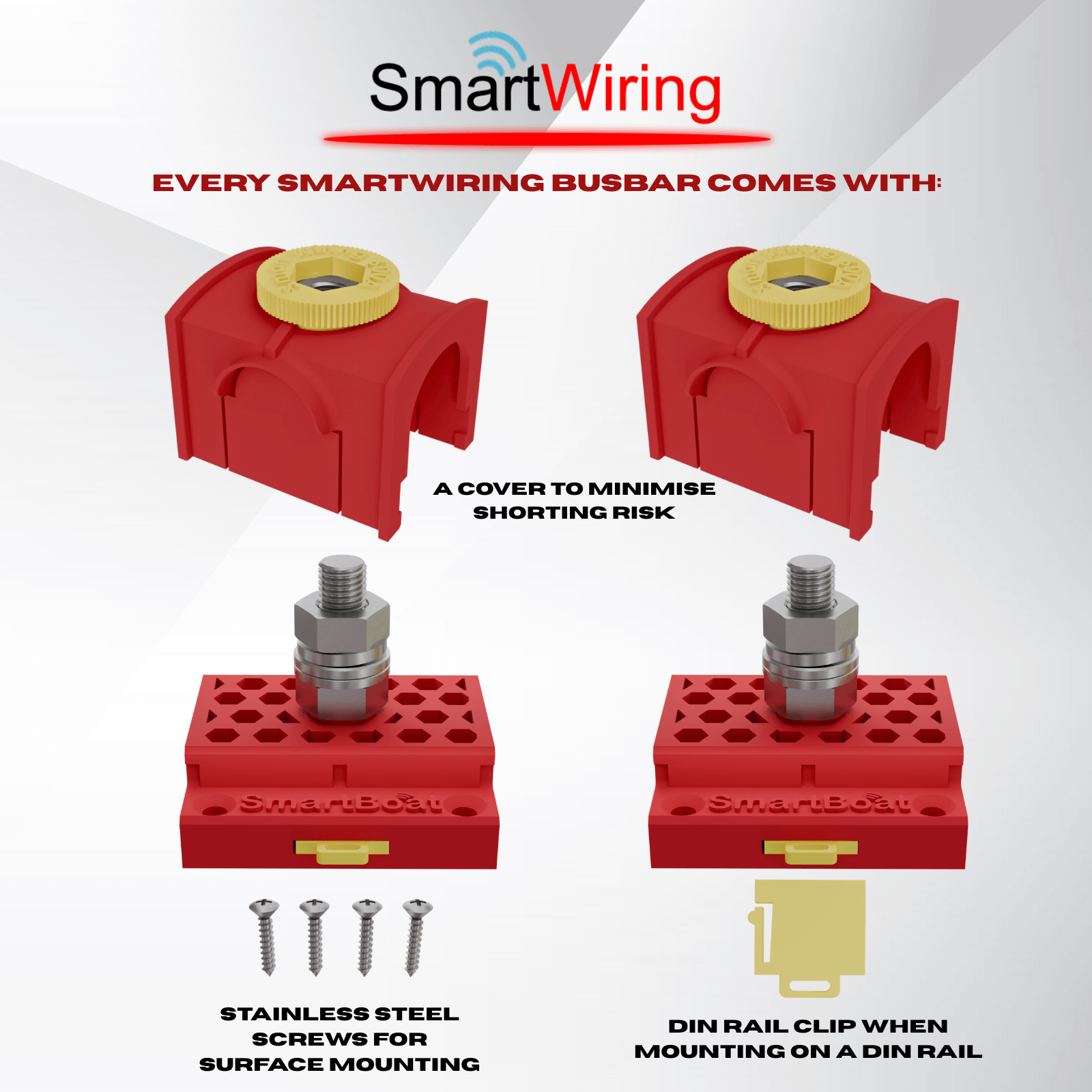

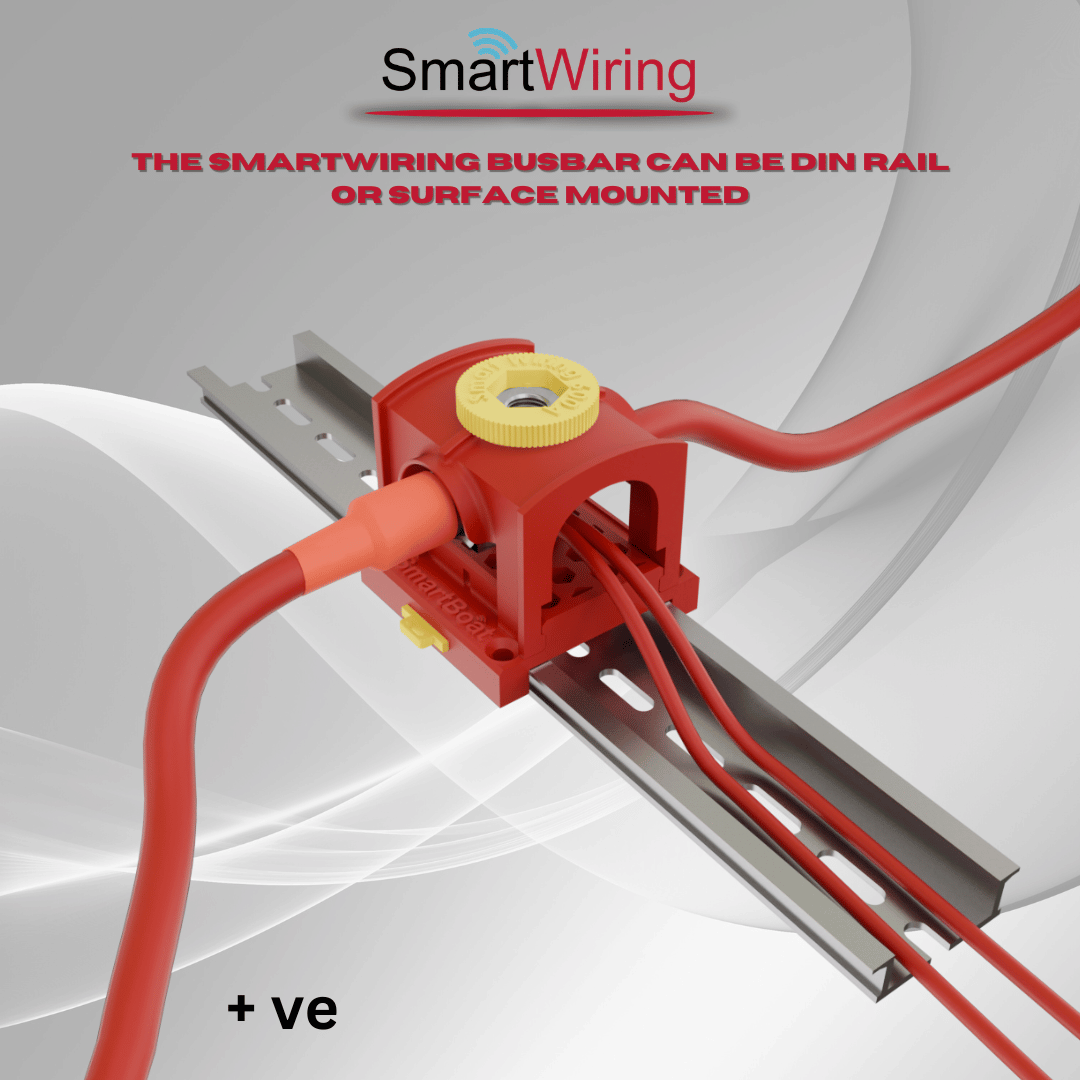

Flexible Mounting Options: Easily mount on DIN rails or surfaces, four stainless steel fixing screws are provided.

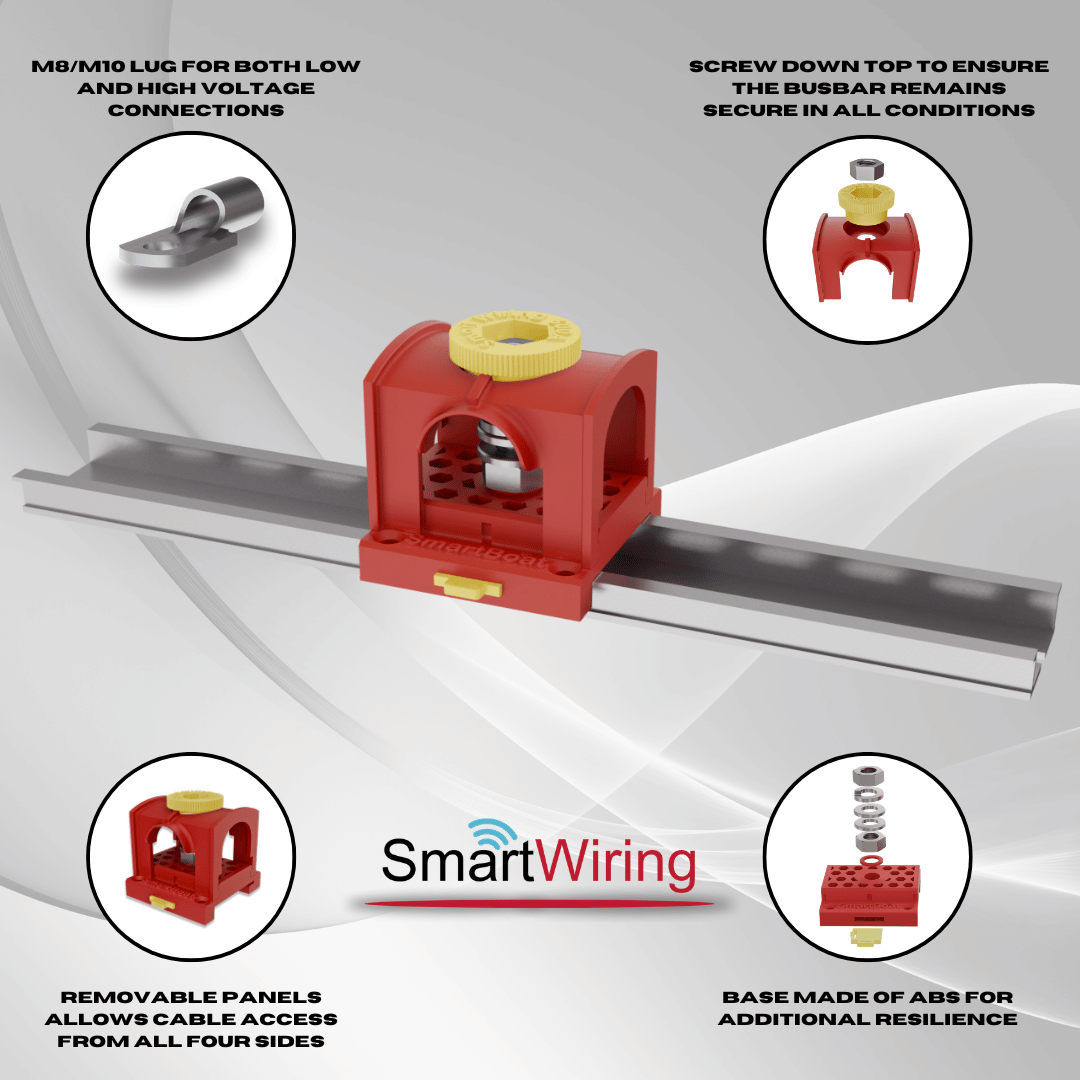

Enhanced Protection: Removable clip-on cover prevents shorting events and gives protection from dirty conditions.

Clear Identification: Name labels for the base are provided to identify circuit modules, such as +12V or Bilge Pump etc..

Rugged Construction: The durable base and fasteners ensure protection in the harshest environments while maintaining ease of installation and maintenance.

Eco-Friendly Materials: Base made from sustainable biomass to minimize environmental impact.

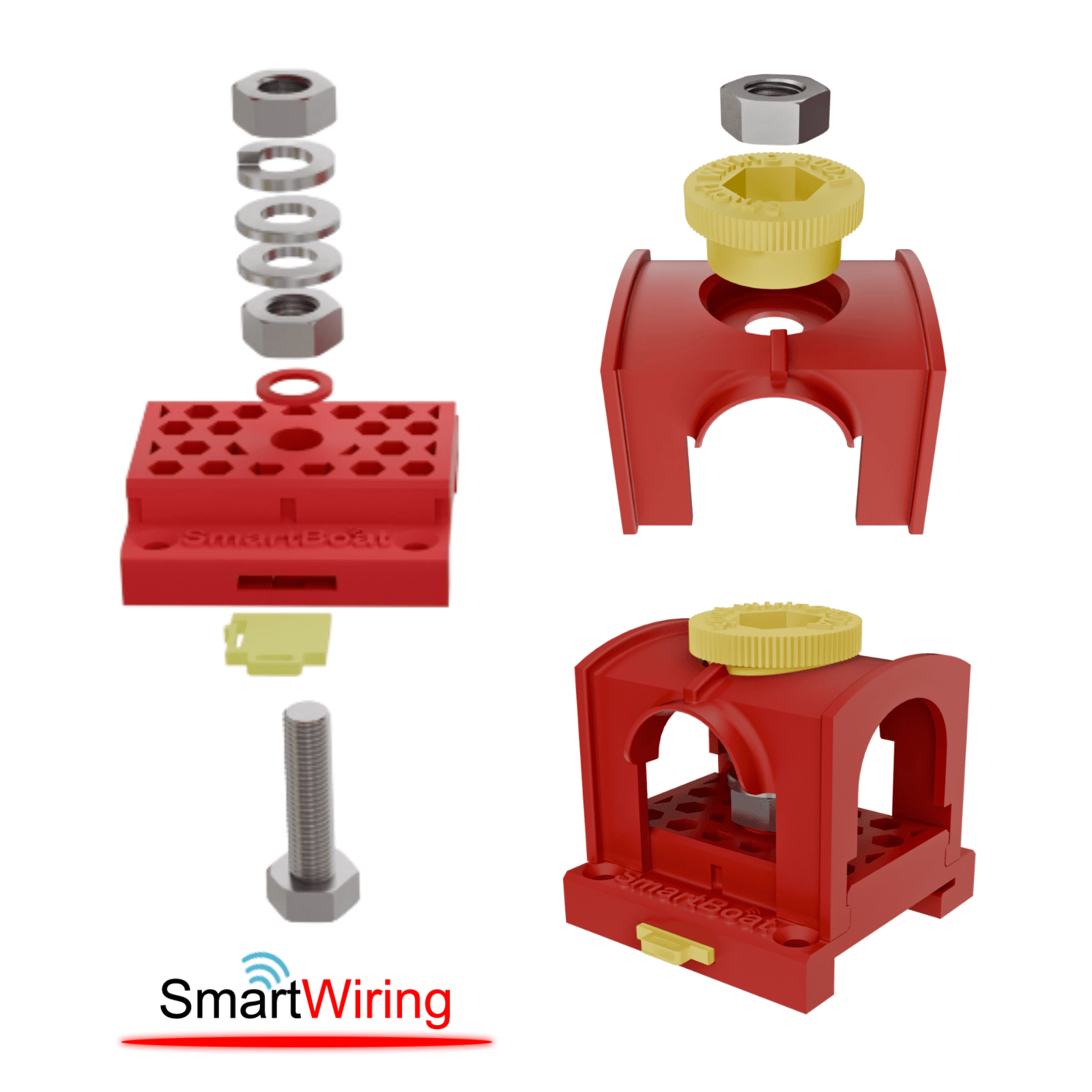

Durable Fasteners: All fasteners are made from stainless steel to avoid corrosion. Through bolts maximise protection from vibration and harsh environments. The terminal is fitted with washers and spring washers to ensure secure connections.

Long-Term Reliability: Our SmartWiring Busbar 400A comes with a 10-year warranty.

High Safety Standards: Designed to handle high currents efficiently, minimizing heat generation through 3 key factors:

• Honeycomb base maximizes heat dissipation.
• Fibre washer stand-offs under the bar facilitate airflow and minimize trapped water, reducing corrosion risk.
• Correctly sized Bus Bar with an optimal surface area to handle the applied current.

(Be sure to check cheaper alternatives meet these essential safety and performance requirements.)

Wide Range of Options: 150A and 250A variants with a variety of screw or bolt terminations to meet diverse needs. Matte Finish: We have chosen a matte tin finish to give better current distribution than bright tin when in contact with other connectors.

Applications: Ideal for creating common distributed circuits used for connecting equipment supported on an insulated base and perfect for boat and vehicle installations.

Shipping Terms: SmartWiring 400A Power Distribution Busbars are sold on a DAP (Delivered at Place) basis. The buyer is responsible for any import duties, taxes, and customs clearance fees in their country.
